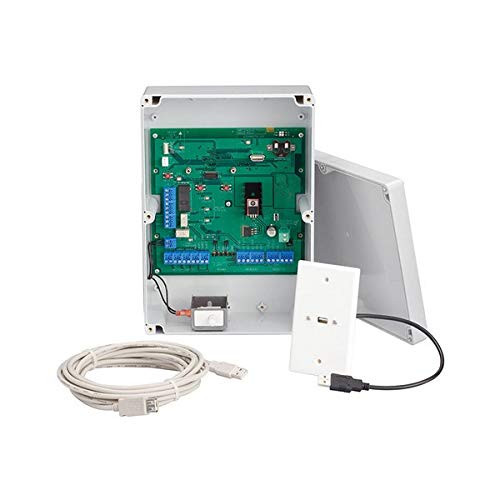

The CT5000 supports up to two separate Wiegand reader inputs. It is compatible with many types of credential technologies. The CT5000 has three form C relay outputs, for strike, auxiliary and alarm. It also has three inputs that include door position and request-to-exit. The CT5000 is compatible with many brands and types of credential technologies including Magnetic Stripe (tracks 1, 2, and 3), 125 kHz Proximity, and 13.56 MHz Smart cards. It also supports a variety of card functions including: normal, toggle, freeze, pass through, construction, lockdown and Card + PIN applications. The CT5000 offline controller has the unique ability to be programmed locally via keypad or via the Schlage Handheld Programming Device. The CT5000 is compatible with Schlage SMS Express, Premier or Enterprise access control software. The CT5000 compliments your facilitys portfolio of CO-Series and AD-Series devices along with all of your other networked readers. If networked functionality is required in the future, the CT5000 can be upgraded. With the addition of a networked communication board and upgraded firmware, the CT5000 becomes a wireless reader interface (WRI400). The WRI400 communicates via 900MHz wireless signals to an AD-Series PIM400 which connects to the networked access control system. The WRI400 eliminates the need to run additional wires to the door, saving you time and money on installation. Supports up to 5000 users and 5000 audits Includes 15 foot USB remote cable connector and decorative wall plate with USB input Requires 2 Amp power supply, such as the Schlage PS902 (sold separately) LED visual indicators (including low battery and state of the relay)
