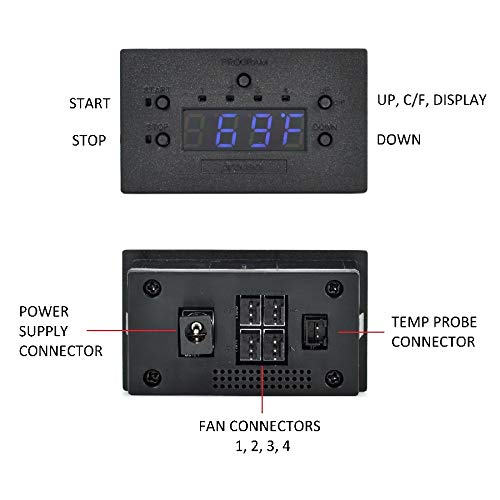

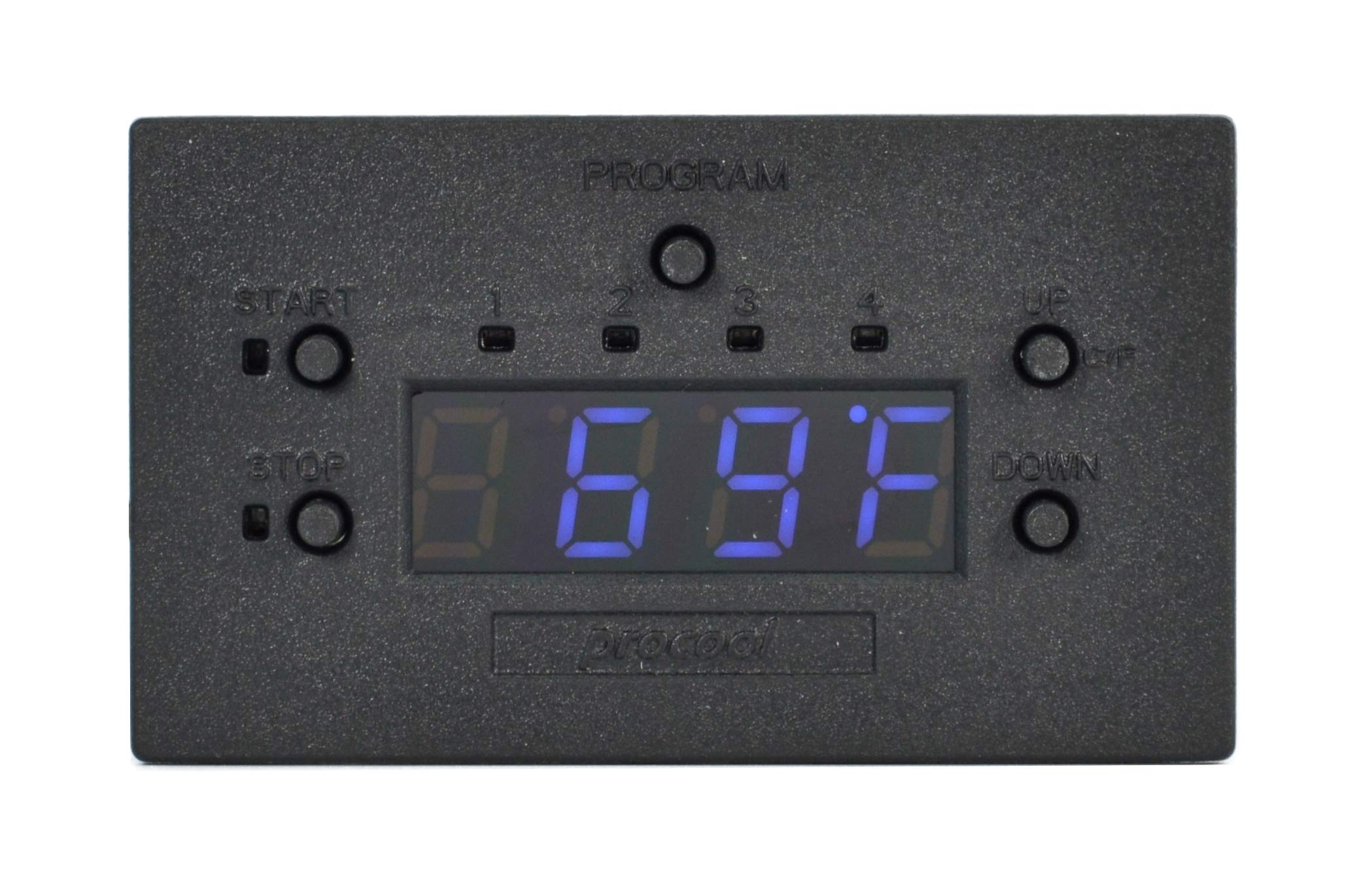

Procool Multi Zone Fan Controller ✓ Control 4 fans independently with 4 temp profiles✓ Large Blue LED display (Switchable- on or off)✓ Switch between Fahrenheit and Celsius✓ Switch from thermal control to always on mode✓ 32" thermal probe (48" Extensions are available separately) User sets the controller's on and off temps to start and stop the system. Set a Global temp that will control all 4 fans together and/or set individual temps for each fan. Each of the 4 fan power connectors are numbered 1 thru 4 corresponding to the front panel LED indicators. When the LED's are on that fan will be on. When the LED's are off those fans will be off. Global setting: Front panel LED's for fans 1-4 are all on. Individual setting: Front panel LED on for the selected or operating fans. Typical start temp is about 80-85F. Off temp at or slightly above room temp. These settings can be adjusted for optimal performance. The controller has a temp sensor that should be located on or near the heat source, or can be located at the top of the cabinet for an ambient reading. This temp is displayed on the controller during operation for easy monitoring. Or, the display can be shut off during operation. (See Operating instructions) Programming Temperature profiles: Set the Global range higher than individual fan settings. If the highest individual temp is for example 90F set the Global temp to 92F or higher. If the Global temp is set to start at 85F then any fans set to start at 90F they will start when the Global start point of 85F is reached. Likewise if using the Global setting, make sure all individual settings are set outside of the Global range. The same rule applies for the OFF settings. See Operating Instructions for more details User sets the controller's on and off temps to start and stop the system. Set a Global temp that will control all 4 fans together and/or set individual temps for each fan. Each of the 4 fan power connectors are numbered 1 thru 4 corresponding to the front panel LED indicators. When the LED's are on that fan will be on. When the LED's are off those fans will be off. Global setting: Front panel LED's for fans 1-4 are all on. Individual setting: Front panel LED on for the selected or operating fans. Typical start temp is about 80-85F. Off temp at or slightly above room temp. These settings can be adjusted for optimal performance. The controller has a temp sensor that should be located on or near the heat source, or can be located at the top of the cabinet for an ambient reading. This temp is displayed on the controller during operation for easy monitoring. Or, the display can be shut off during operation. (See Operating instructions) Programming Temperature profiles: Set the Global range higher than individual fan settings. If the highest individual temp is for example 90F set the Global temp to 92F or higher. If the Global temp is set to start at 85F then any fans set to start at 90F they will start when the Global start point of 85F is reached. Likewise if using the Global setting, make sure all individual settings are set outside of the Global range. The same rule applies for the OFF settings. See Operating Instructions for more details Controls and connections Each fan connector can be programmed to it's own temperature profile. Temperature Sensor High quality and durable temperature sensor. Locate close to heat source for best response. Mount Mounting bracket for Procool Fan Controller model AVP-MFC Power Supply Model PSW-12V1A Input: 100-240 VAC Output: 12VDC AC plug type: NEMA 1-15P DC Cable: 36 inch with 2.1mm barrel plug Controls and connections Temperature Sensor Mount Power Supply Specifications Size: 71mm x 40mm x 25mm Cutout: 68mm x 37mm Input Voltage: 12VDC Input Plug: 2.1mm Barrel Plug Output Voltage: 12VDC Max Output Amps: 6A Output Plugs: 4 Output Plug Type: 3 Pin molex type
