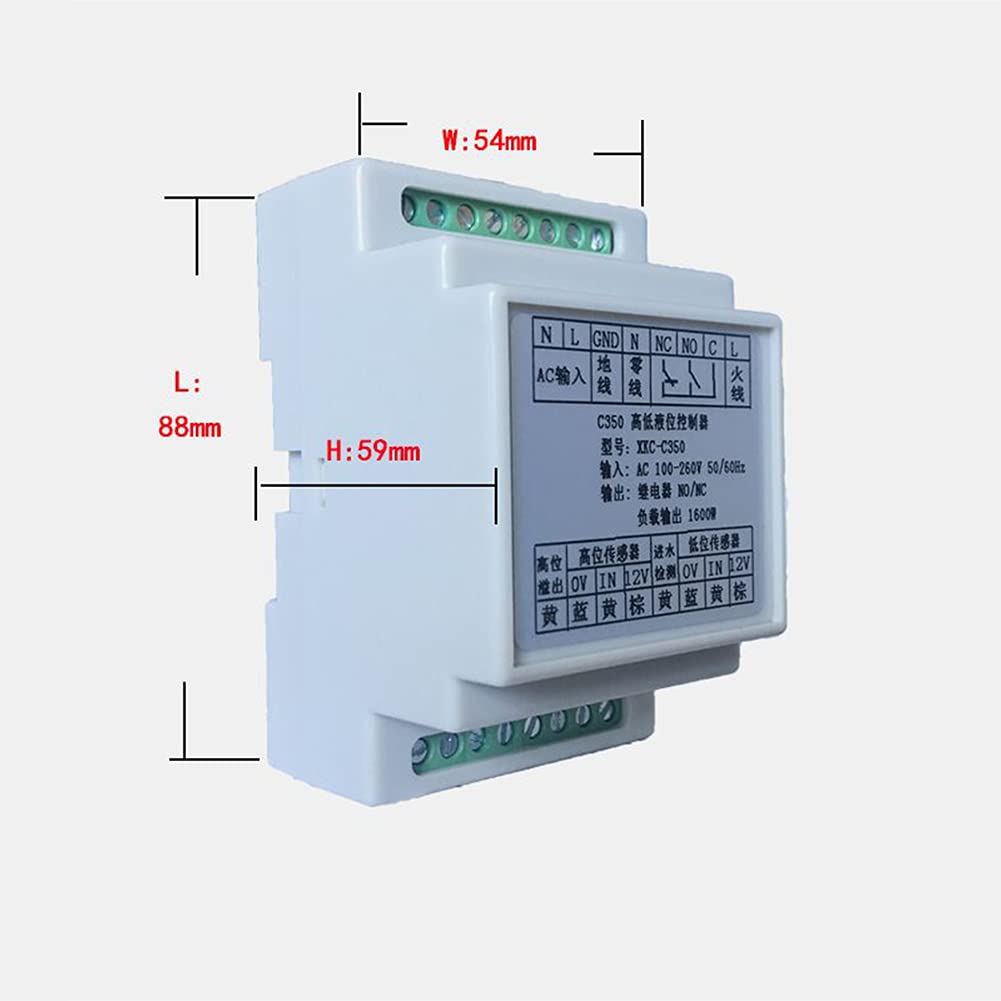

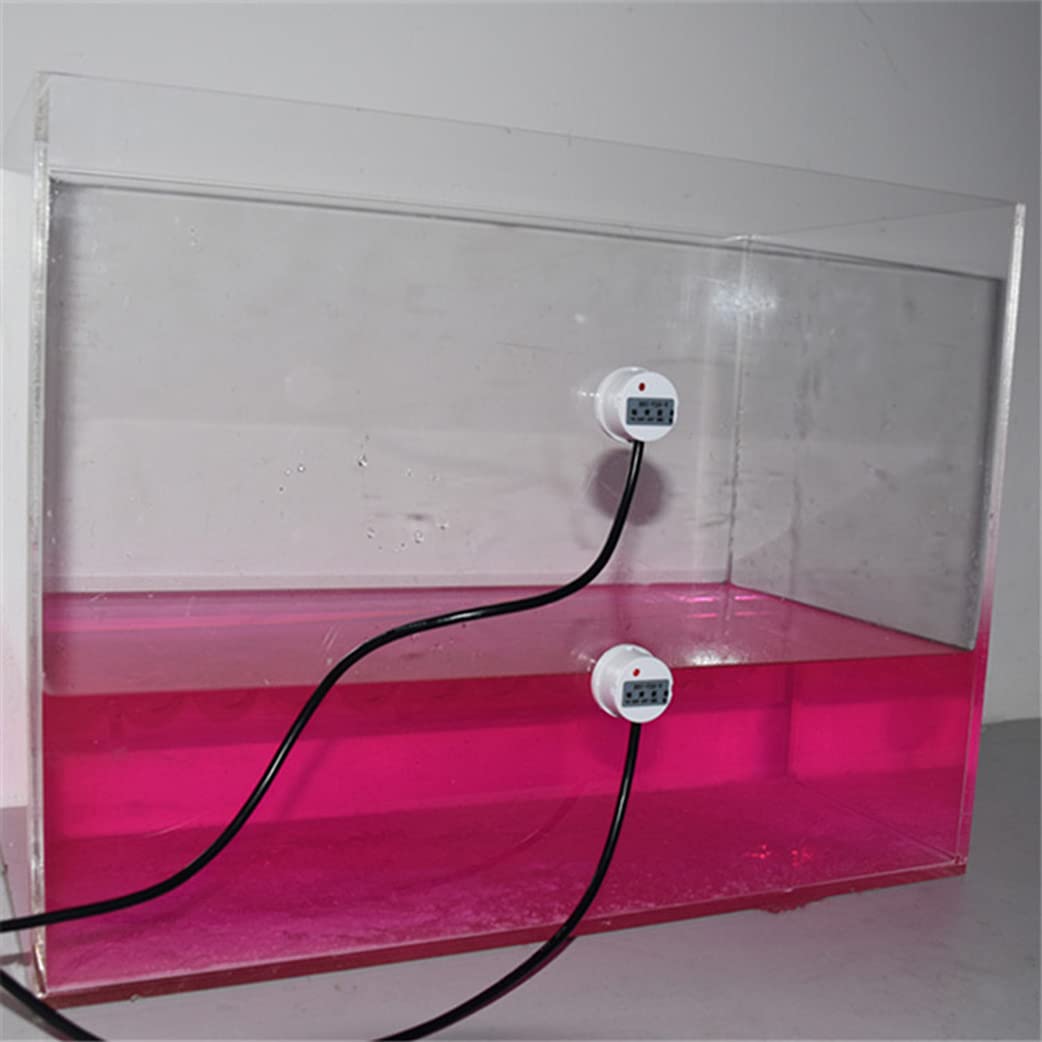

Description Realize the liquid level control. When the container liquid level is too low, the low liquid level alarm signal from the low liquid level sensor is triggered to trigger the C350 controller to close the relay and start the water pump to add liquid level. When the liquid level reaches a certain height, the high liquid level sensor sends a signal to trigger C350 The controller cuts off the relay and automatically stops the water pump, so it works in a cycle. So as to realize the function of automatic control of the container liquid level and keep the container liquid level stable. Product Features 1. AC95~265V wide voltage power supply 2. Relay dry node output, suitable for multiple load control 3. The control is diversified, and the water pump can be controlled in manual or automatic mode. 4. The installation is simple and convenient. It can be installed with screws or electric box tracks. Parameter Input voltage: AC180V-220V, 50/60Hz Working voltage: DC12V Working current: working current ≤110 mA, static current consumption ≤20mA Load power: below 1.6KW (for overload or for three-phase pumps, an AC contactor is required) Alarm output: 800W (resistive load) normally open normally closed output Output mode: relay normally open and normally closed or AC 110V/220V two options one output Input signal: low-position sensing signal input; high-position sensing signal input; Induction head interface voltage: DC 12V Working temperature: -10~75℃ Dimensions: 115*90*40
